Shielded Room

Exterior dimensions:

5.65 x 2.75 x H2.75 m

Interior dimensions:

5.15 x 2.25 x H2.25 m

transformer sheels

(150 sheets of1035x2000x0.35mm)

2 layers

exterior: double

interior: single

(triple on a interior floor)

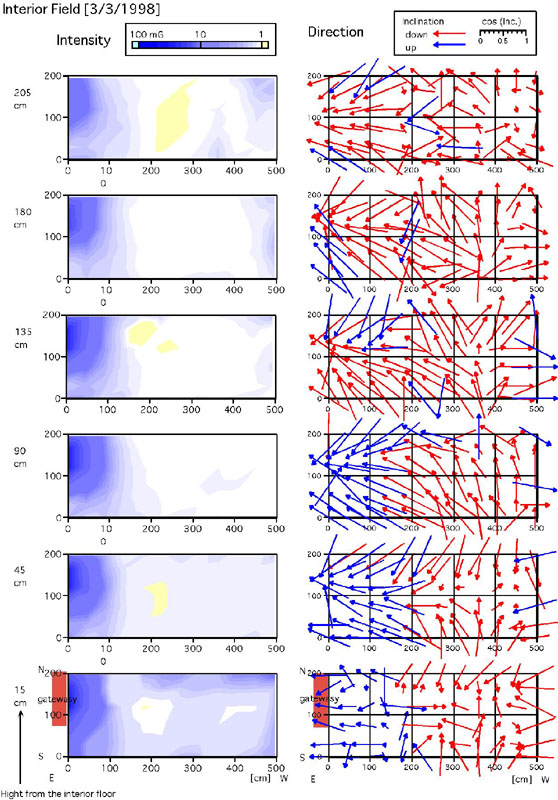

Interior magnetic field

after construction

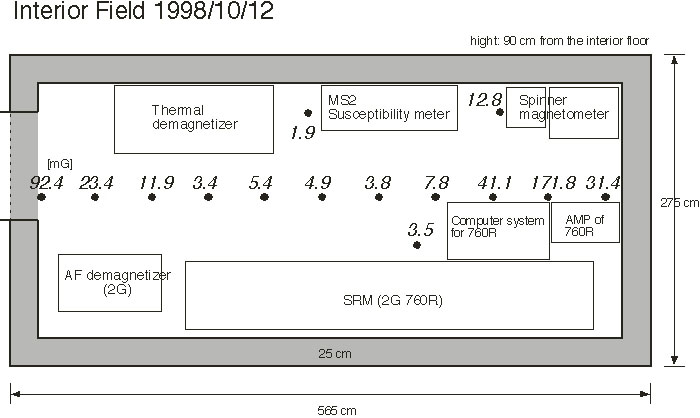

[2G SRM, Spinner, AF & Thermal demag., MS2]
